Site Plan vs Plot plan for Construction: Guide for Permits

Published

3 months ago

May 4, 2026

siteplans

Starting a construction project can feel overwhelming. Whether you want to build your dream home, add a cozy backyard deck, or remodel a commercial building, one crucial document stands between your vision and reality: the site plan.

Many property owners overlook this drawing, yet it serves as the foundation for your entire project. A flawed site plan can trigger immediate delays. Conversely, a professionally drafted site plan accelerates your local building department’s approval process.

Unfortunately, property owners frequently confuse site plans with plot plans. They often struggle to understand what local authorities actually require. This comprehensive guide breaks down everything you need to know in plain English, empowering you to move forward with absolute confidence.

What Exactly Is a Site Plan?

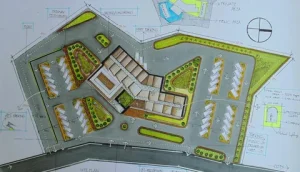

In simple terms, a site plan is a detailed, scaled architectural drawing. It provides a top-down, bird’s-eye view of your entire property. The map illustrates exactly how your land looks today and details every change you intend to make.

Think of it as a comprehensive master map. It shows the precise relationship between your land boundaries and any physical structures. A standard site plan displays several critical elements:

Property boundaries and exact dimensions
Existing structures like your primary house, garages, or sheds
Proposed construction, including extensions or new buildings
Driveways, walkways, and parking spaces
Utility lines for water, sewage, electricity, and gas
Setback lines that mark the legally mandated gaps between structures and property borders
Natural features such as major trees, slopes, and drainage pathways

Ultimately, city planners look at this document to determine how your new construction fits into the surrounding neighborhood.

Why Do Local Authorities Demand a Site Plan?

You cannot simply build whatever you want on your land. Local governments enforce strict zoning codes and safety regulations. When you request a building permit, officials utilize your site plan to ensure legal adherence before construction begins.

Specifically, city inspectors check for four major factors:

1. Zoning Law Compliance

Every neighborhood has specific rules regarding building heights and lot coverage. Your site plan proves that your project will not violate these local restrictions.

2. Public Safety Regulations

Emergency vehicles need clear access to your property. Planners check your driveways and structural clearances to ensure fire trucks can maneuver safely during an emergency.

3. Environmental Protection

Construction alters how rainwater moves across the earth. Consequently, authorities examine site plans to ensure your project will not cause flooding on your neighbor’s land or destroy protected wetlands.

4. Preservation of Infrastructure

Digging blindly can rupture underground power lines or water mains. Your site plan maps out these utilities clearly, protecting vital city infrastructure from accidental damage. Without a detailed site plan, your local permitting office will probably deny or postpone your application.

Site Plan vs. Plot Plan

Individuals often interchange the phrases “site plan” and “plot plan.” However, they serve different purposes. Mixing them up can cause major headaches during the permit process.

To help you understand the differences instantly, review this quick-reference comparison:

Feature	Plot Plan	Site Plan
Primary Focus	Boundary lines and land dimensions	Detailed design, infrastructure, and usage
Complexity	Simple, basic overview	High complexity, fully detailed
Structures Shown	Only major existing buildings	Both existing and proposed structures
Utilities Included	Rarely	Always (Water, power, gas, drainage)
Primary Use	Real estate sales, basic property records	Building permits, construction, engineering

As the table shows, a plot plan acts as a basic snapshot of your land boundaries. A site plan serves as a highly detailed blueprint for active development. For any real construction work, you will almost always need a comprehensive plan.

Six Essential Elements

If you want your building permit approved quickly, your site plan must include specific data points. Ensure your draft highlights these six essential features:

Property Boundaries: The drawing must display the exact legal dimensions of your lot.
Existing Structures: You must show every permanent structure currently standing on the land, including small tool sheds.
Suggested Enhancements: The plan should clearly differentiate between new buildings and existing ones by utilizing unique colors or shading lines.
Setbacks and Buffer Zones: The plan must indicate the precise distance between your new building and your property lines to prove zoning compliance.
Access Points: You must map out all driveways, curb cuts, sidewalks, and streets surrounding your land.
Utility Layouts: The drawing must show exactly where water lines, electrical connections, and sewer pipes enter the property.

The Cost of Mistakes

When city officials review permit applications, they inspect site plans with a magnifying glass.

Reflect on the typical outcomes of an inadequately prepared site plan:

Permit Rejection

Should a city planner notice a missing utility line or an erroneous boundary line, they will promptly reject your permit.

Crushing Project Delays

A single rejection forces you back to the drawing board. This loop can easily delay your construction start date by weeks or months.

Wasted Money

Redrafting plans costs extra money. Furthermore, if you build in the wrong spot due to an inaccurate plan, you might face legal orders to demolish your new structure.

To protect your wallet, avoid common pitfalls like using outdated survey data, ignoring local building codes, or omitting existing structures.

Final Thoughts

A site plan is far more than a dry technical drawing. It serves as the vital foundation for your entire construction journey. By understanding what a site plan requires, recognizing how it differs from a plot plan, and securing professional drafting help, you can bypass unnecessary stress.

Do not treat this step as a minor legal chore. Instead, view a professional site plan as a smart investment that protects your property, saves you thousands of dollars in errors, and moves your project smoothly from an idea into reality. Ready to build? Start your journey by securing an accurate site plan today.
